IC layout中计算Layer面积的skill

这个skill脚本可以用来计算layer的面积，包括Path、Rectange、Polygon。
用法：复制代码保存为 layer_area.il,
在icfb的CIW窗口

load "layer_area.il"

在layout界面选中要测量的图形, 按下 Alt+a 即可弹出所选图形的面积。
如果依次选择多个图形，在按下Alt+a时显示所选的第一个图形面积，点击Close关闭后显示第二个图形面积，再按下Close关闭后显第三个图形面积。

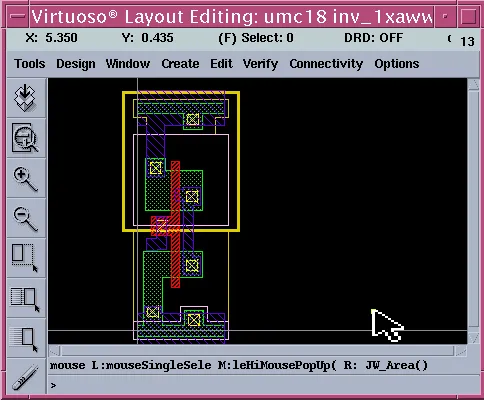

下图依次选取了diff, poly和metal三个layer, 按Alt+a则显示diff面积，点Close显示poly面积，再点Close显示metal面积。
PS.这只能计算flat的layer面积，不能计算instance的面积。 Layer Area 示例

cadence

/*   Synopsis : CL_Area()   */

procedure(CL_Area()
	prog((cvId selObj area number shape Box points point1 point2 length width )
		cvId = getEditRep(hiGetCurrentWindow())
		selObj = geGetSelSet(cvId)
		number = length(selObj)
		if(zerop(number) then
			CLMessage("Error!!" 'Close "Please select a layer." )
			return()
		)
		geDeselectAll(hiGetCurrentWindow())
		foreach(shape selObj
			area = 0
			case( shape~>objType
				("rect"
					Box = shape~>bBox
					area = (car(cadr(Box)) - car(car(Box))) * (cadr(cadr(Box)) - cadr(car(Box)))   )
				("polygon"
					number = length(shape~>points)
					points = shape~>points
					points = append(points list(car(points)))
					while(!zerop(number)
						point1 = car(points)
						points = cdr(points)
						point2 = car(points)
						area = area + ( car(point1) * cadr(point2) )
						area = area - ( car(point2) * cadr(point1) )
						number--
					);while
					area = abs(area/2)
				)
				("path"
					number = shape~>nPoints
					points = shape~>path
					width = shape~>width
					while(!zerop(number-1)
						point1 = car(points)
						points = cdr(points)
						point2 = car(points)
						if(equal(car(point1) car(point2))
							length = abs(cadr(point1) - cadr(point2))
							length = abs( car(point1) - car(point2))
						);if
						area = area + length * width
						number--
					);while
					case(shape~>pathStyle
						("extendExtend" area = area + width*width )
						("varExtendExtend" area = area + (shape~>beginExt+shape~>endExt)*width )
						("roundRound" area = area + 4/9.0 * width * width )
						;(w/3^2) * 4   (t );truncateExtend
					);case
				)  (
				t   area = 0.0   )
			);case
			geSelectObject(shape)
			if(zerop(area) then
				CLMessage("Error!!" 'Close "This is not a layer.")
				sprintf(area "Area = unknown")
			else
				sprintf(area "Area = %f" area)
			)
			CLMessage("Layer Area" 'Close area)
			geDeselectFig(shape)
		);foreach
	);prog
);procedure
;-------------------------------------------------------
procedure(CLMessage(title button message)
	prog( ()
		hiDisplayAppDBox(
			?name 'CLDBox
			?dboxBanner title
			?buttonLayout button
			?dboxText message
		)
	);prog
);procedure

hiSetBindKey("Layout" "Alt<Key>a" "CL_Area()")
