测量path长度及rectangle长宽

编程
0 字 / 约 0 分钟
2013/8/13

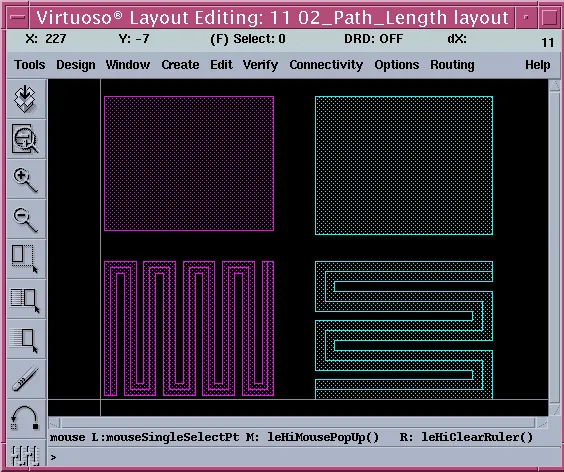

这个skill脚本可以用来测量path的长度和rectangle的长宽。 用法：复制代码保存为 measurelength.il, 在icfb的CIW窗口 load "measurelength.il" 在layout界面选中要测量的path或rectangle, 按下 Ctrl+k 即可显示相关尺寸，如下图所示。 Path Length 示例

cadence
/* Synopsis : Path_Length()
	Version : 1.0a
	Description : Measure Path & Rectangle Length */
procedure( Path_Length()
	prog( (winId cvId selObj shape points llx lly urx ury)
		winId = hiGetCurrentWindow()
		cvId = getEditRep(winId)
		selObj = geGetSelSet(cvId)
		leClearAllRuler(cvId)
		foreach(shape selObj
			case( shape~>objType
				("rect" || "inst"
					Box = shape~>bBox
					llx = car(car(Box))
					lly = cadr(car(Box))
					urx = car(cadr(Box))
					ury = cadr(cadr(Box) )
					points= list((llx:(lly+ury)/2)(urx:(lly+ury)/2))
					leCreateRuler(cvId points)
					points= list(((llx+urx)/2:lly)((llx+urx)/2:ury))
					leCreateRuler(cvId points)
				)
				("path"
					points = shape~>path leCreateRuler(cvId points) )
				(t hiDisplayAppDBox(?name
					'JWPath_Length
					?buttonLayout  'Close
					?dboxBanner "Warning!!"
					?dboxText "No Select Objet (rect/cell/path)")
				)
			);case )
		;foreach
	);prog
);procedure
hiSetBindKey("Layout" "Ctrl<Key>k" "Path_Length()")
